- ความคมชัด 5 ล้านพิกเซล
- ขนาดภาพ/วีดีโอ 2880× 1620pix
- ขนาดเลนส์ : 3.6mm. / 2.8mm.
- เฟรมเรท 25 fps@5MP (16:9 video output)
- Smart Dual Light : รองรับการตั้งค่าเปิด/ปิดไฟLEDวอร์มไลท์หน้ากล้องได้
- บันทึกภาพสี 24 ชั่วโมง
- ระยะอินฟาเรททำงาน LED(illumination) 20 เมตร
- มีไฟแจ้งเตือน : เมื่อเกิดการเคลื่อนไหวหน้ากล้อง
- มีไมค์ในตัว : รองรับการบันทึกภาพพร้อมเสียง
- ปรับได้ 4 ระบบ CVI/CVBS/AHD/TVI
- บอดี้อลูมิเนียม
- ติดภายนอกได้ , มาตรฐานกันน้ำกันฝุ่นระดับ IP67
- รองรับกำลังไฟ 12 VDC
Max 25 fps@5MP (16:9 video output).
· Smart Dual Light.
· 20 m illumination distance.
· Super Adapt.
· Built-in MIC.
· 3.6 mm fixed lens (2.8 mm optional).
· CVI/CVBS/AHD/TVI switchable.
· IP67, 12 VDC

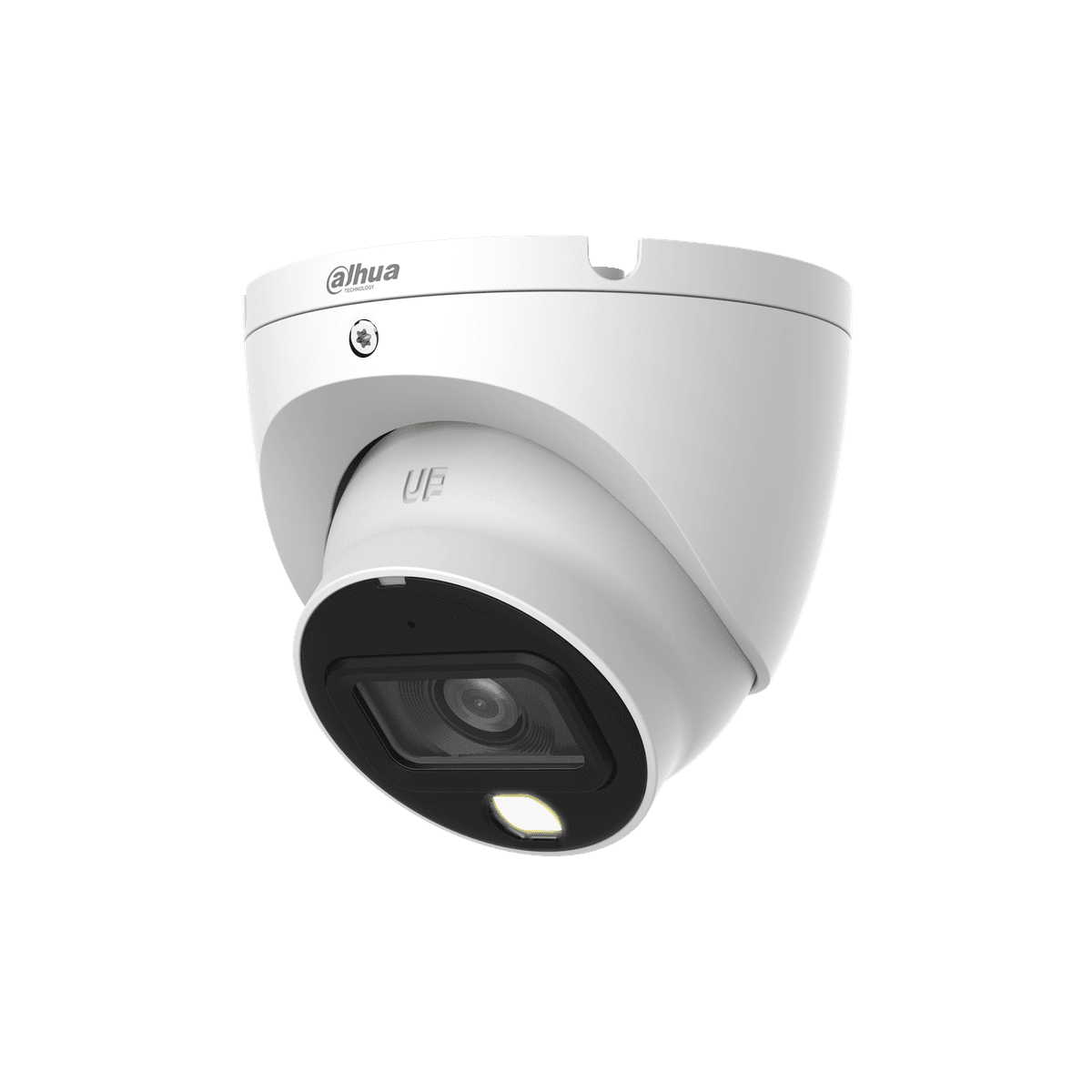

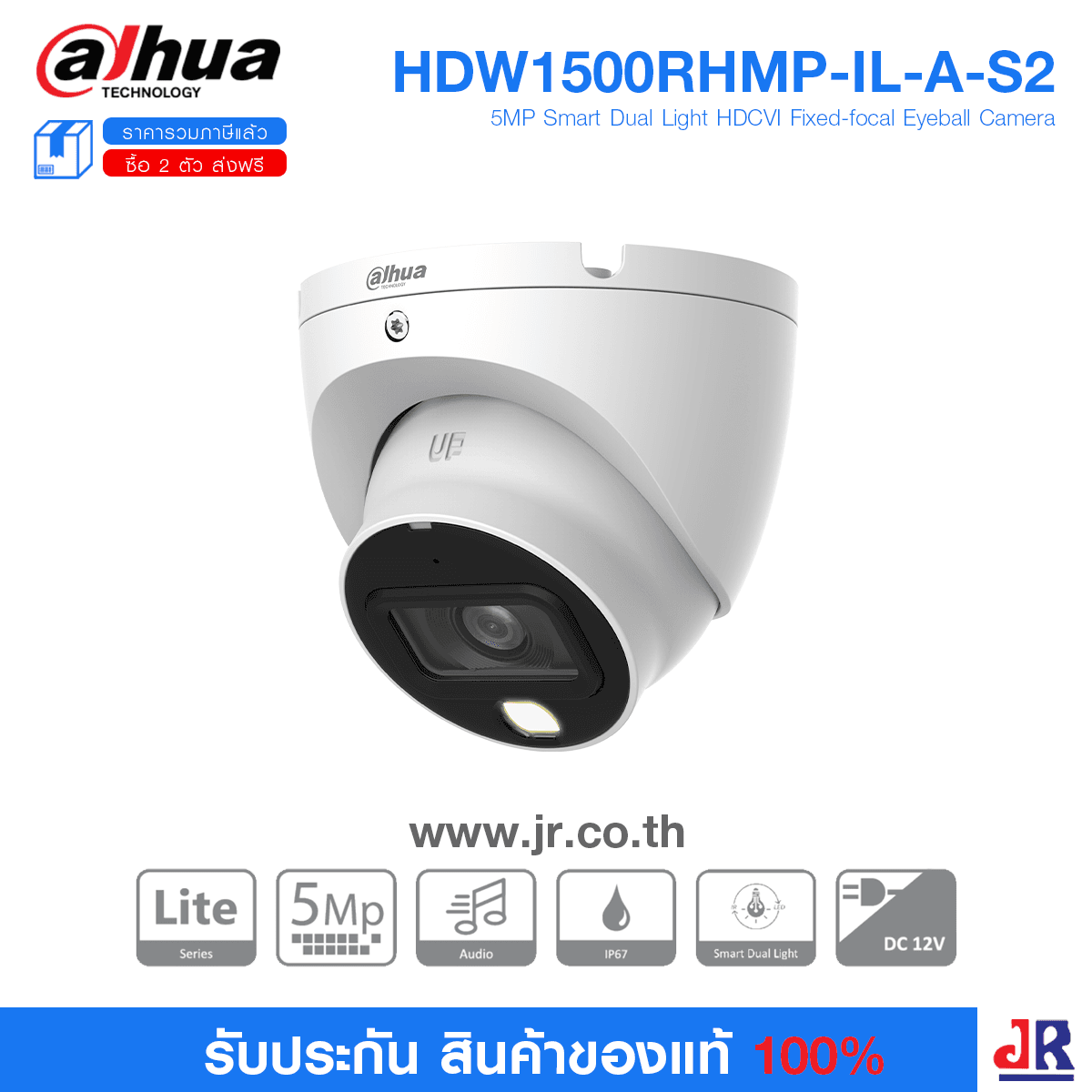

Brand | DAHUA |
Model | HDW1500RHMP-IL-A |
Image Sensor | 5MP CMOS |
Lens | Aperture : F1.6 Focal Length : 2.8mm |
Lens Mount | M12 |
Angle of View | H: 106°; V: 56°; D: 125° |
Adjustment Angle | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Shutter | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
Min. Illumination | 0.05 [email protected] (Color, 30 IRE) 0.005 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
IR | 20m |
Video Resolution | 2880 (H) × 1620 (V) |
Frame Rate | Max 25 fps@5M |
Audio | One channel built-in mic |
Interface | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
Power | 12 VDC ± 30% |
Power Consumption | Max 3.1 W (12 VDC, WLED on) |
Working Environment | Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity <95% (RH), non-condensing Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity <95% (RH), non-condensing |
Ingress Protection | IP67 |
Material | Metal |
Dimension | (W x D x H) : 9.40 x 9.40 x 8.57 cm |
Net Weight | 0.31 KG |
Package Dimension | (W x D x H) : 11.50 x 12.00 x 10.50 cm |
Gross Weight | 0.45 KG |
Volume | 1,449.00 cm3 |
