ชุดกล้องวงจรปิดพร้อมติดตั้ง KOWA PTZ หมุนได้ ระบบ Analog จำนวน 4 ตัว ความคมชัด 2MP บันทึกภาพพร้อมเสียง

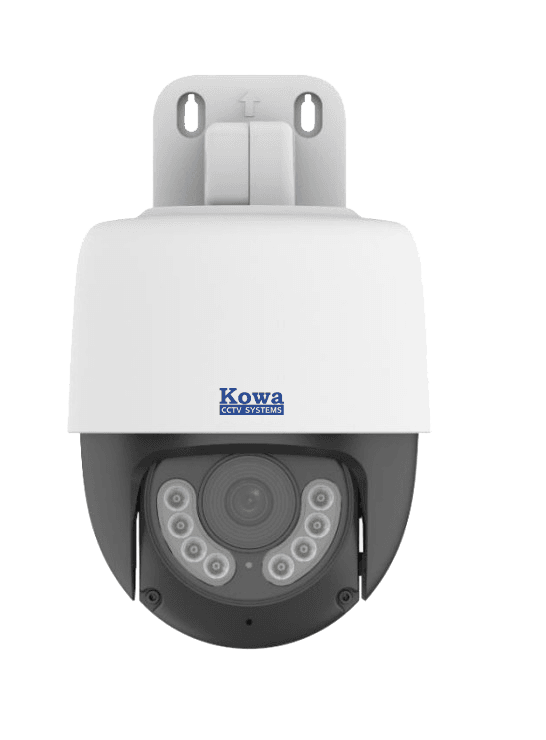

KOWA PTZ หมุนได้ ระบบ Analog
• 2MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP66 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports 0 to 345° pan range, 0 to 90° tilt range
• Supports digital defog
รายละเอียดสินค้า
• 2MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP66 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports 0 to 345° pan range, 0 to 90° tilt range
• Supports digital defog
คุณลักษณะสินค้า
| Model | UAC-P112-AF40-W |
| Sensor | |
| Pixel | 2MP |
| Size | 1/2.9" |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (white light on) |
| Lens | |
| Lens | 4.0mm |
| Lens mount | M12 |
| Angle of view | H: 83.8° V: 42.7° D: 100.1° |
| Illuminator | |
| Illuminator | Eight white-light illuminators |
| Illumination distance | 30m |
| Lifetime | ≥20,000 hours |
| Video | |
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) |
| Frame rate | TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@30fps, 720P@25fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 color images |
| Digital noise reduction | 2D/3D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Defog | Digital Defog |
| Pan & Tilt | |
| Pan range/speed | Pan range: 0° to 345° Pan speed: 1° to 40°/s |
| Tilt range/speed | Tilt range: 0° to 90° Tilt speed: 1° to 30°/s |
| Presets | 32 |
| Control mode | Coaxial control, RS485 control |
| Audio | |
| Microphone | Built-in Mic |
| Camera audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI/AHD/CVI/CVBS |
| RS485 | 1* RS485, supports 9600bps, 4800bps, 2400bps, 1200bps |
| Operating environment | |
| Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4kV for power and video output interfaces, 6kV for RS485 interface |
| Ingress protection | IP66 |
| General | |
| Power | DC 12V (±25%), with reverse polarity protection and surge protection. Max 8.5W |
| Mount | Wall mount, pendant mount (with bracket) |
| Dimensions | Φ118mm*199mm (diameter*height) |
| Material | Plastic |
| Weight | 477g (1.05lb) |
| Certification | CB, CE, FCC |
ยินดีให้คำปรึกษา โดยทีมงานมือชีพ
