กล้องวงจรปิด ทรงโดม ความคมชัด 8MP รุ่น IPC3738SE-ADZK-I0 : Uniview (UNV)

฿0
การรับประกัน 3 ปี
บริการ ติดตั้งฟรี



IPC3738SE-ADZK-I0

High quality image with 8MP,1/1.8’’ CMOS sensor

3840*2160@30fps in the main stream

Ultra 265, H.265, H.264, MJPEG

Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

LightHunter technology ensures ultra-high image quality in low illumination environment

Up to 120 dB Optical WDR (Wide Dynamic Range)

Built-in heater, support normal start-up at low temperature

DC12V or PoE (IEEE 802.3af) power supply

Wide voltage range of ±25% in DC

Audio 1 in and 1 out, Alarm 2 in and 1 out

รายละเอียดสินค้า

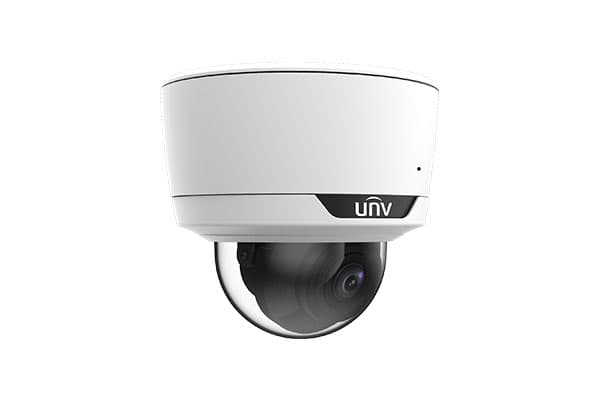

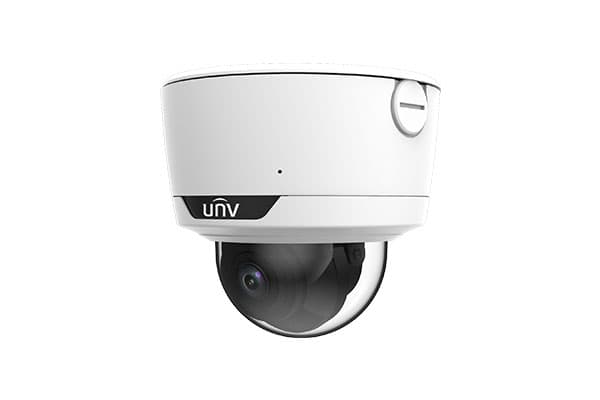

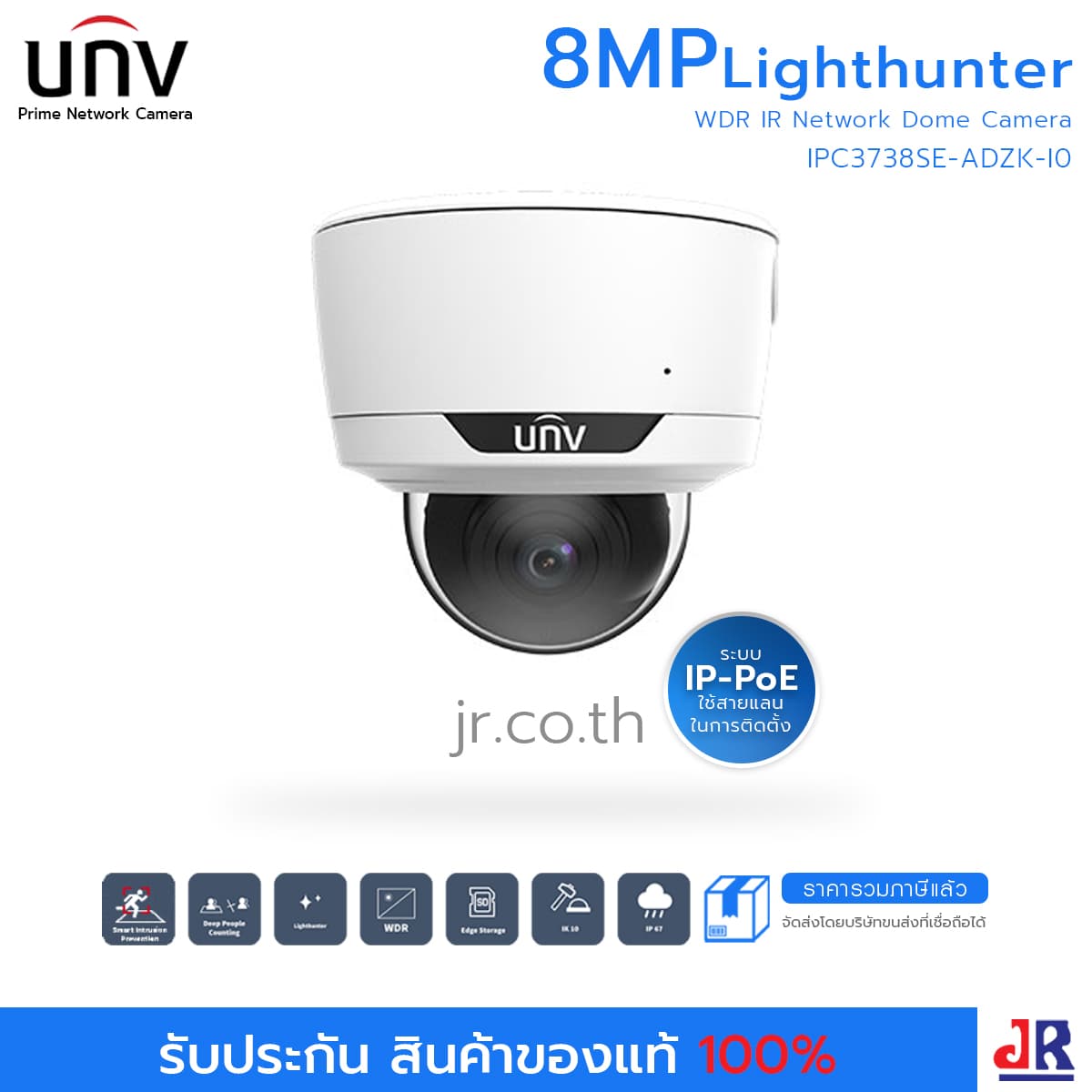

8MP Lighthunter WDR IR Network Dome Camera

High quality image with 8MP,1/1.8’’ CMOS sensor

3840*2160@30fps in the main stream

Ultra 265, H.265, H.264, MJPEG

Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

LightHunter technology ensures ultra-high image quality in low illumination environment

Up to 120 dB Optical WDR (Wide Dynamic Range)

Built-in heater, support normal start-up at low temperature

DC12V or PoE (IEEE 802.3af) power supply

Wide voltage range of ±25% in DC

Audio 1 in and 1 out, Alarm 2 in and 1 out

คุณลักษณะสินค้า

 IPC3638SE-ADZK-I0
Camera
Sensor1/1.8", 8.0 megapixel, progressive scan, CMOS
Min. IlluminationColour:0.0008 lux (F1.2, AGC ON)
0 lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
WDR120dB
S/N>56dB
Lens
Lens type[email protected], AF automatic focusing and motorized zoom lens
IrisFixed
Field of View (H)48.0°~101.1°
Field of View (V)23.9°~57.2°
Field of View (D)4.12°~74.38°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.898.6(323.3ft)39.4(129.3ft)19.7(64.7ft)9.9(32.3ft)
12241.0(790.6ft)96.4(316.2ft)48.2(158.1ft)24.1(79.1ft)
Illuminator
IR RangeUp to 40m (131 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 8MP (3840*2160), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
ROIUp to 8 areas
Video streamTriple streams
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas per scene
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°
HLCSupport
BLCSupport
DefogDigital Defog
Intelligent
Smart intrusion preventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection;
People countingSupport people flow counting and crowd density monitoring
Events
Basic DetectionMotion detection, Audio detection, Tampering alarm;
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8KHz
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and common user
SecurityPassword protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZLive
EZView
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/O1/1
Alarm I/O2/1
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
Built-in HeaterN/A
Video output1 BNC
Network1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
PowerDC12V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 9W
Dimensions (Ø x H)Φ129mm x 110mm (Φ5.1’’ x 4.3’’)
Weight0.71Kg(1.57lb)
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection6KV
Reset buttonSupport
