กล้องวงจรปิด ทรงโดม ความคมชัด 8MP ภาพสี 24 ชั่วโมง รุ่น IPC3638SE-ADF28(40)K-WL-I0: Uniview (UNV)

฿0
การรับประกัน 3 ปี
บริการ ติดตั้งฟรี



IPC3638SE-ADF28(40)K-WL-I0

• High quality image with 8MP, 1/1.8"CMOS sensor
• 8MP (3840*2160)@ 30(AI off)/25fps; 5.3MP (3072*1728)@ 30/25fps; 3.6MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps; 720P (1280*720), Max 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Colorhunter technology ensures 24-hour full-color images
• F1.0 Super aperture
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Supports 256 G micro SD card
• IK10 vandal resistant and IP67 protection

รายละเอียดสินค้า

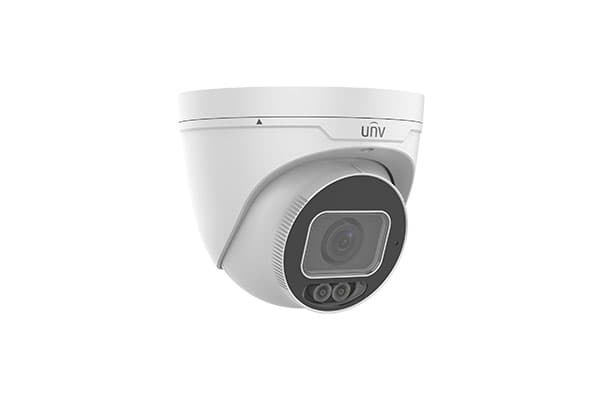

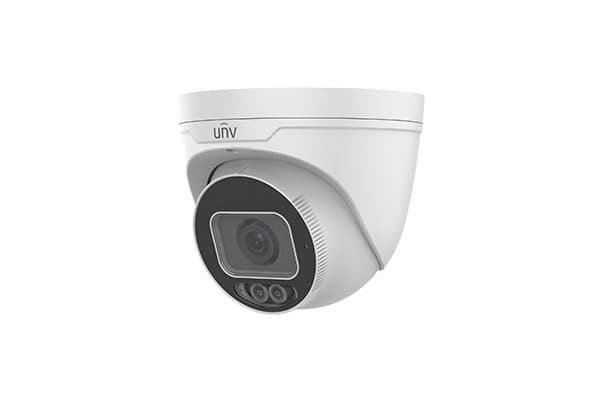

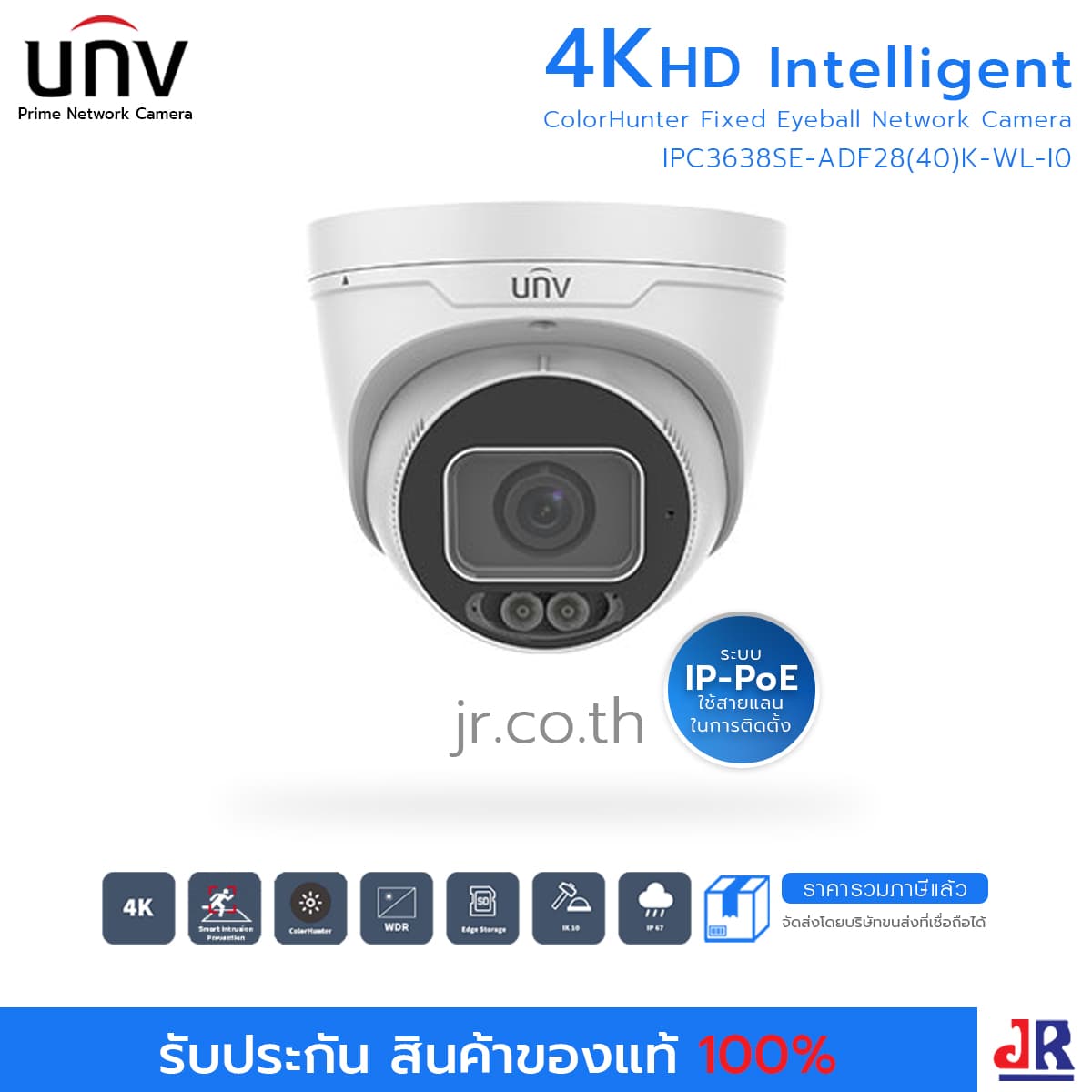

4K HD Intelligent ColorHunter Fixed Eyeball Network Camera

• High quality image with 8MP, 1/1.8"CMOS sensor
• 8MP (3840*2160)@ 30(AI off)/25fps; 5.3MP (3072*1728)@ 30/25fps; 3.6MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps; 720P (1280*720), Max 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Colorhunter technology ensures 24-hour full-color images
• F1.0 Super aperture
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Supports 256 G micro SD card
• IK10 vandal resistant and IP67 protection

คุณลักษณะสินค้า

 IPC3638SE-ADF28K-WL-I0IPC3638SE-ADF40K-WL-I0
Camera
Sensor1/1.8", 8.0 megapixel, progressive scan, CMOS
Minimum IlluminationColour: 0.0005 lux (F1.0, AGC ON)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 72°Rotate: 0° ~ 360°
WDR120dB
S/N>56dB
Lens
Lens[email protected][email protected]
IrisFixed
Field of View (H)110.15°94.29°
Field of View (V)59.06°49.73°
Field of View (D)143.19°115.97°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.863.025.212.66.3
4.090.036.018.09.0
Illuminator
LED DistanceUp to 30m (98ft)
LEDs Number2
LED On/Off ControlAuto/Manual
Video
Video CompressionUltra265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream: 8MP (3840*2160), Max 30fps;5.3MP (3072*1728), Max 30fps; 3.6MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamTriple streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction2D/3D DNR
Smart IlluminationSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
Intelligent
Smart intrusion preventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical AnalysisPeople counting, support people flow counting and crowd density monitoring
Events
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio Detection
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Audio Bitrate64 Kbps
Two-way audioSupport
SuppressionSupport
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API,SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/OInput: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
RS485N/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 * RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certifications
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 11W
Power InterfaceØ 5.5mm coaxial power plug
Dimensions (Ø x H)Φ129 x 110mm (Φ5.1” x 4.3”)
Weight0.64kg (1.41lb)
MaterialMetal
Operating Conditions-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection4KV
Reset ButtonSupport
