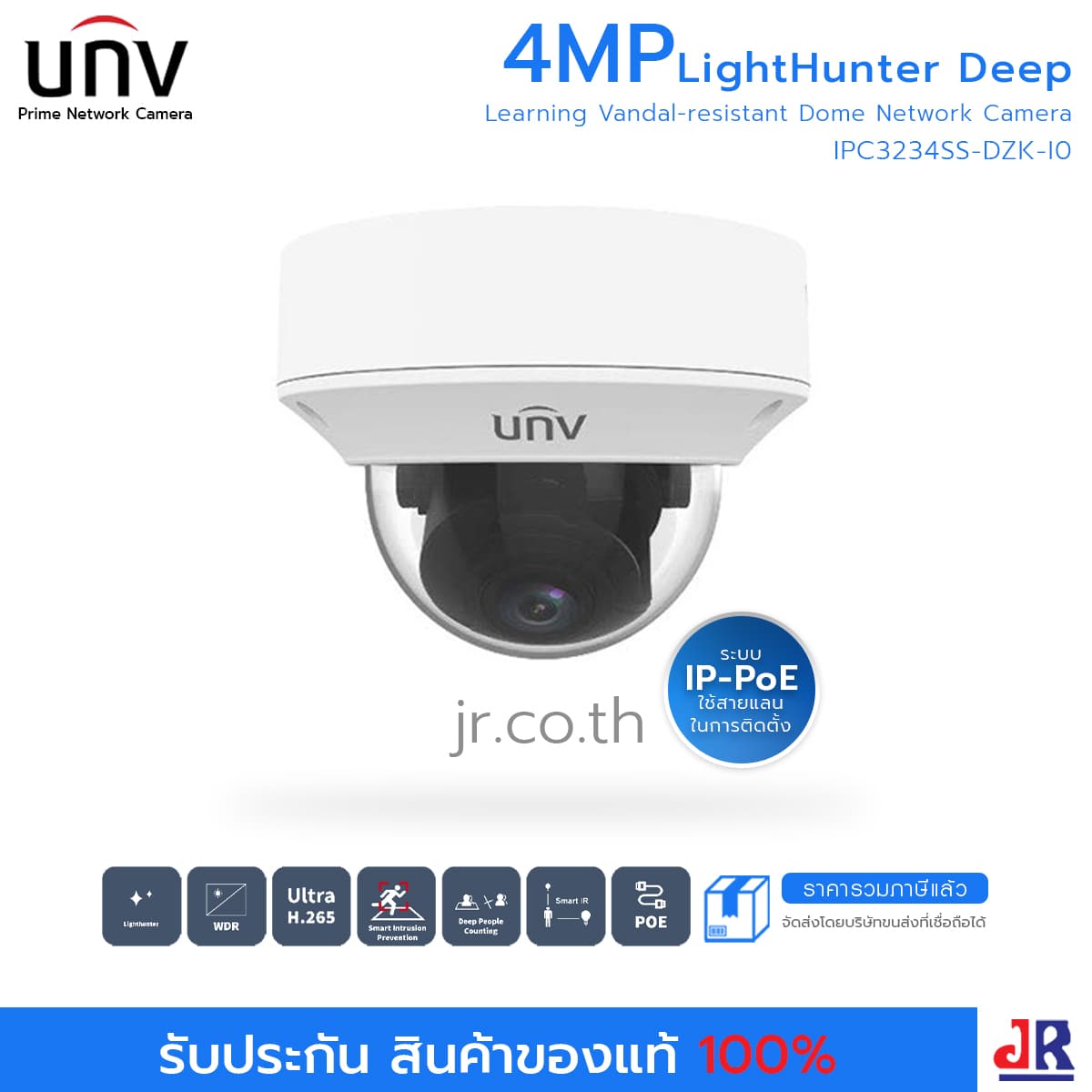

กล้องวงจรปิด ทรงโดม ความคมชัด 4MP รุ่น IPC3234SS-DZK-I0 : Uniview (UNV)

100%
฿0
ปกติ฿1
การรับประกัน 3 ปี
บริการ ติดตั้งฟรี

IPC3234SS-DZK-I0

Optics

1/2.7’’, Powered by lighthunter

Smart IR, up to 40m (131 ft) IR distance

Up to 120 dB Optical WDR (Wide Dynamic Range)

Smart

Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

Compression

Ultra 265, H.265, H.264, MJPEG

Triple streams

2688*1520@30fps in the main stream

ROI (Region of Interest)

Network

ONVIF Conformance

Structure

DC12V or PoE power supply

Wide voltage range of ±25% in DC

Micro SD, up to 256 GB

Alarm 1 in and 1 out, Audio 1 in and 1 out

IP67 ingress protection

IK10 vandal resistant

รายละเอียดสินค้า

Optics

1/2.7’’, Powered by lighthunter

Smart IR, up to 40m (131 ft) IR distance

Up to 120 dB Optical WDR (Wide Dynamic Range)

Smart

Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

Compression

Ultra 265, H.265, H.264, MJPEG

Triple streams

2688*1520@30fps in the main stream

ROI (Region of Interest)

Network

ONVIF Conformance

Structure

DC12V or PoE power supply

Wide voltage range of ±25% in DC

Micro SD, up to 256 GB

Alarm 1 in and 1 out, Audio 1 in and 1 out

IP67 ingress protection

IK10 vandal resistant

คุณลักษณะสินค้า

 IPC3234SS-DZK-I0
Camera
Sensor1/2.7", 4.0 megapixel, progressive scan, CMOS
Lens[email protected], AF automatic focusing and motorized zoom lens
IrisAuto aperture
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.770.9(232.5ft)28.4(93.0ft)14.2(46.5ft)7.1(23.3ft)
13.5247.5(812.0ft)99.0(324.8ft)49.5(162.4ft)24.8(81.2ft)
Field of View (H)26.0°~92.0°
Field of View (V)15.0°~53.9°
Field of View (D)30.7°~119.6°
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan: 0°~355°Tilt: 0°~80°Rotate: 0°~355°
Min. IlluminationColour:0.001ux (F1.2, AGC ON)
0 lux with IR
WDR120dB
Day/NightIR-cut filter with auto switch (ICR)
IR RangeUp to 40m (131 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 4MP (2688*1520),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
ROISupported
Video streamTriple streams
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas(8 blacks/8 mosaics)
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLCSupport
BLCSupport
Intelligent
Smart intrusion preventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical AnalysisPeople counting, support people flow counting and crowd density monitoring
Events
Basic DetectionMotion detection, Audio detection, Tampering alarm
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Exception Detection And StatisticsObject Removed, Object Left Behind
Audio
Audio CompressionG.711U, G.711A
Two-way AudioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZLive
Ezview
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/OAudio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Network1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General

Power

DC12V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 8W
Support overcurrent protection, Input short circuit protection
Dimensions (Ø x H)Φ148.0 x 111.4mm (Φ5.8’’ x4.4’’)
Weight0.93kg(2.05lb)
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection6KV
