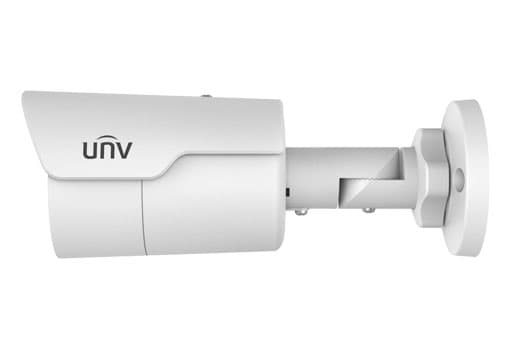

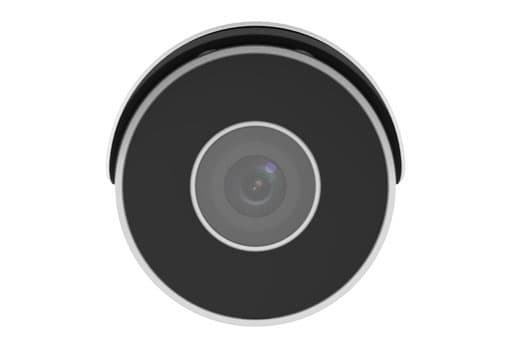

กล้องวงจรปิด ทรงกระบอก ความคมชัด 2MP รุ่น IPC2122LR5-UPF28(40)M-F : Uniview (UNV)
100%
฿0ปกติ฿1
การรับประกัน 3 ปี
บริการ ติดตั้งฟรี
IPC2122LR5-UPF28(40)M-F
Optics
Day/night functionality
Smart IR, up to 50m (164ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265, H.264
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
รายละเอียดสินค้า
คุณลักษณะสินค้า
| IPC2122LR5-UPF28M-F | IPC2122LR5-UPF40M-F | |||||||
| Camera | ||||||||
| Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | |||||||
| Lens | [email protected] | [email protected] | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 42 | 16.8 | 8.4 | 4.2 | ||||
| 4.0 | 60 | 24 | 12 | 6 | ||||
| Angle of view (H) | 112.7° | 86.5° | ||||||
| Angle of View (V) | 60.1° | 44.1° | ||||||
| Angle of View (O) | 146.5° | 106.4° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 50m (164ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | DWDR | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264 | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 4CIF (704*576), Max 30fps | |||||||
| Video Bit Rate | 128 Kbps~6 Mbps | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | NA | |||||||
| Dewarping | NA | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | |||||||
| Client | EZStation EZView EZLive | |||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
| Interface | ||||||||
| Network | 10/100M Base-TX Ethernet | |||||||
| Certifications | ||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 6W | ||||||||
| Dimensions (Ø x H) | 191.3×72.6×70.9mm (7.5”×2.9”×2.8”) | |||||||
| Net Weight | 0.5kg (1.1lb) | |||||||
| Material | Metal | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 2KV | |||||||
| Ingress Protection | IP67 | |||||||
